G06 adopts integrated design of fuselage, which greatly reduces the number of parts, and has higher strength and better waterproof
performance
EFT G06 6L agricultural drone frame Quadcopter with free Delivery
Overview
- Category : Frame Kits
- Condition : New
- Configuration : Quadcopter
- Brand / Model No : EFT G06
Description

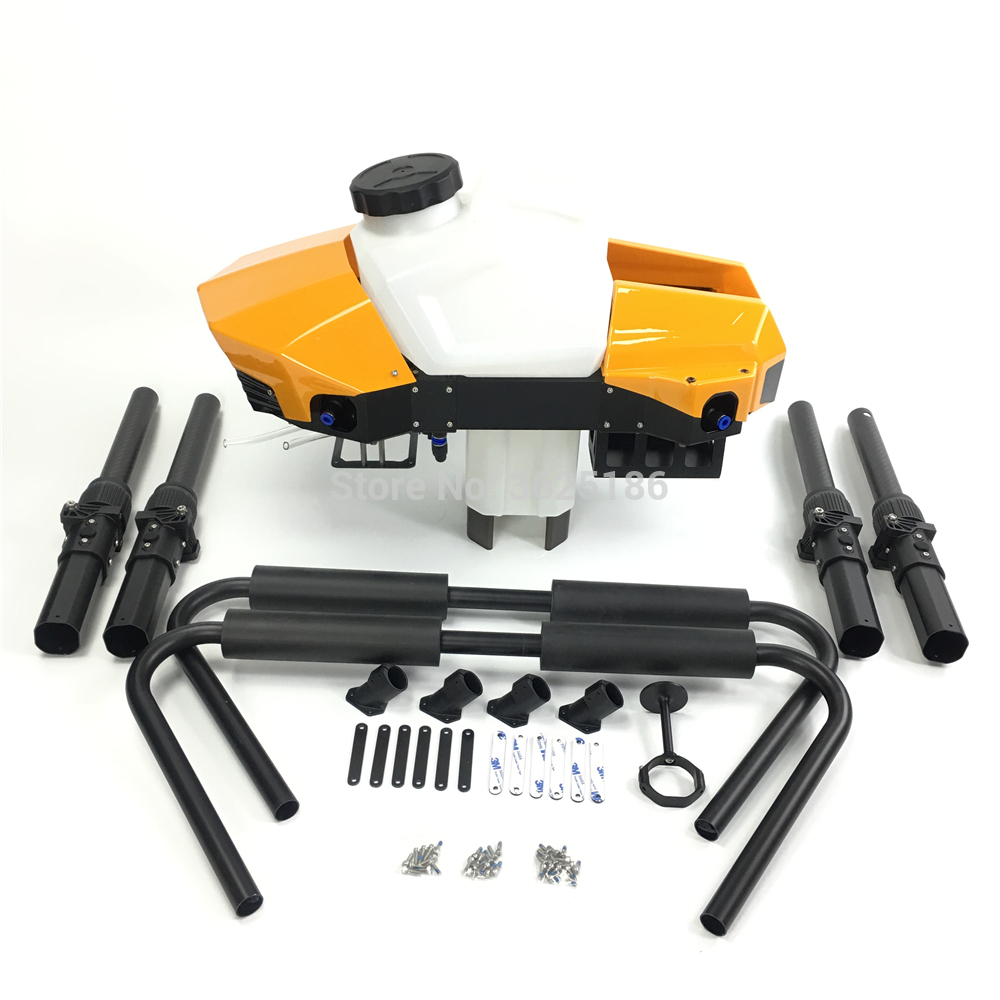

Note: This product is only a frame with water tank No flight controller, radio system, power system, battery system and spray / storage system Can be customized according to your needs.
Products Description

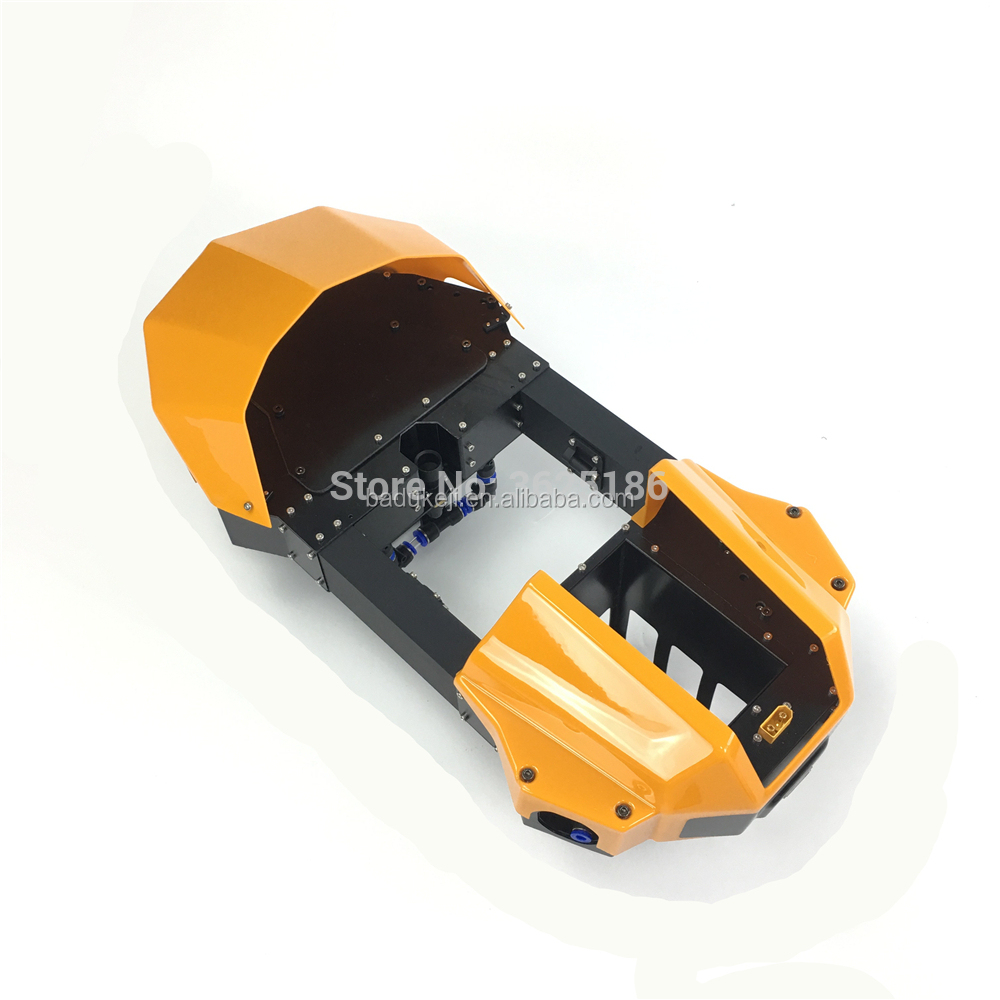

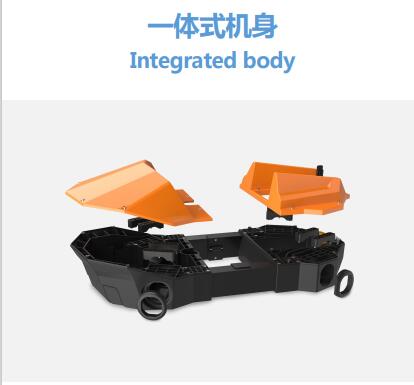

Integrated body

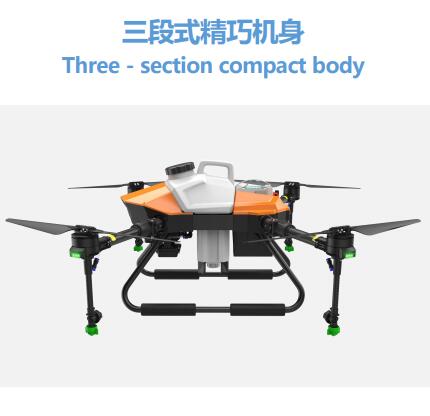

adopts a three-section body layout design. The front is the flight control, the middle is the tank, and the back is the
battery. The structure is exquisite and the shape is unique.

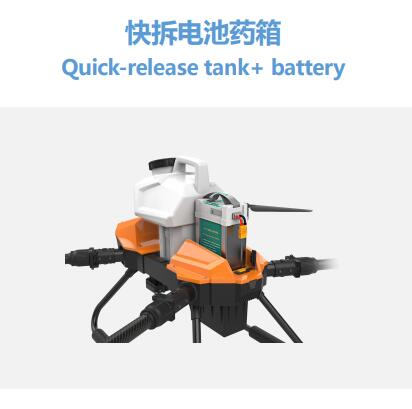

adopts quick-release tank and quick-release battery design, which can realize quick change the tank and battery , which is
easy to operate and saves time and effort

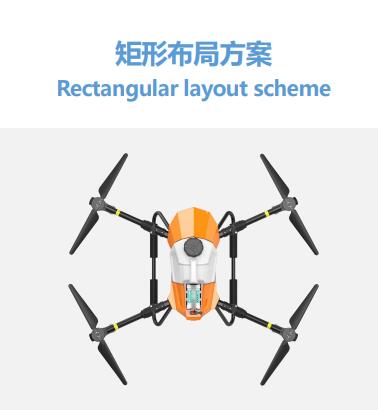

adopts a flat rectangular layout scheme, extend the arms to both sides to extend the nozzle spacing to the maximum extent, and
thus increase the spray width.
thus increase the spray width.

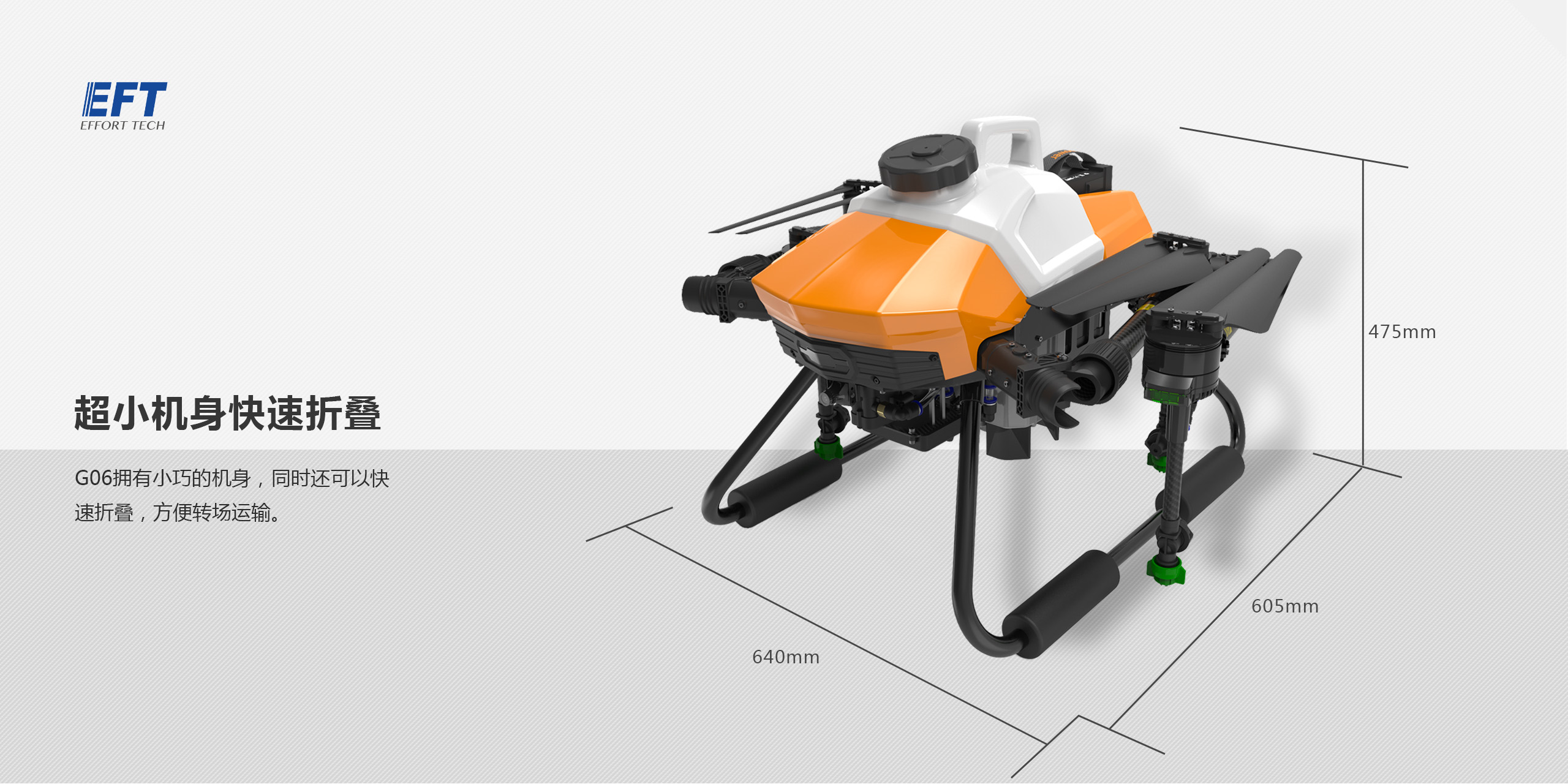

The G06 has a compact frame and can also be quickly folded for easy transit transportation.

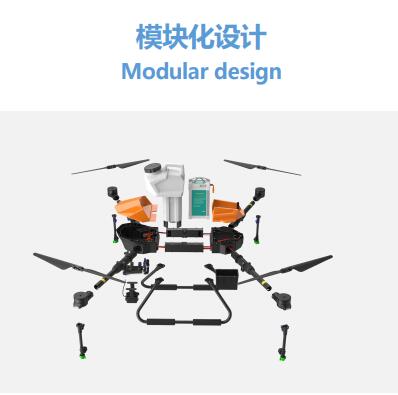

The whole body of G06 adopts a modular design, and each part can be quickly removed and replaced for easy maintenance.
product details
Product Paramenters
|
Wheelbase
|
1172mm
|
|
Expanded size
|
1580*1270*475mm
|
|
Folding size
|
605*640*475mm
|
|
Tank capacity
|
6L
|
|
Frame weight
|
5.4kg
|
|
Maximum take-off weight
|
17.9KG
|
|
Recommended motor
|
Hobbywing X6 or 6215
|
|
Maximum support propeller
|
23 inch
|
|
Recommended battery
|
RE Founder 8000mAh 12S
|
